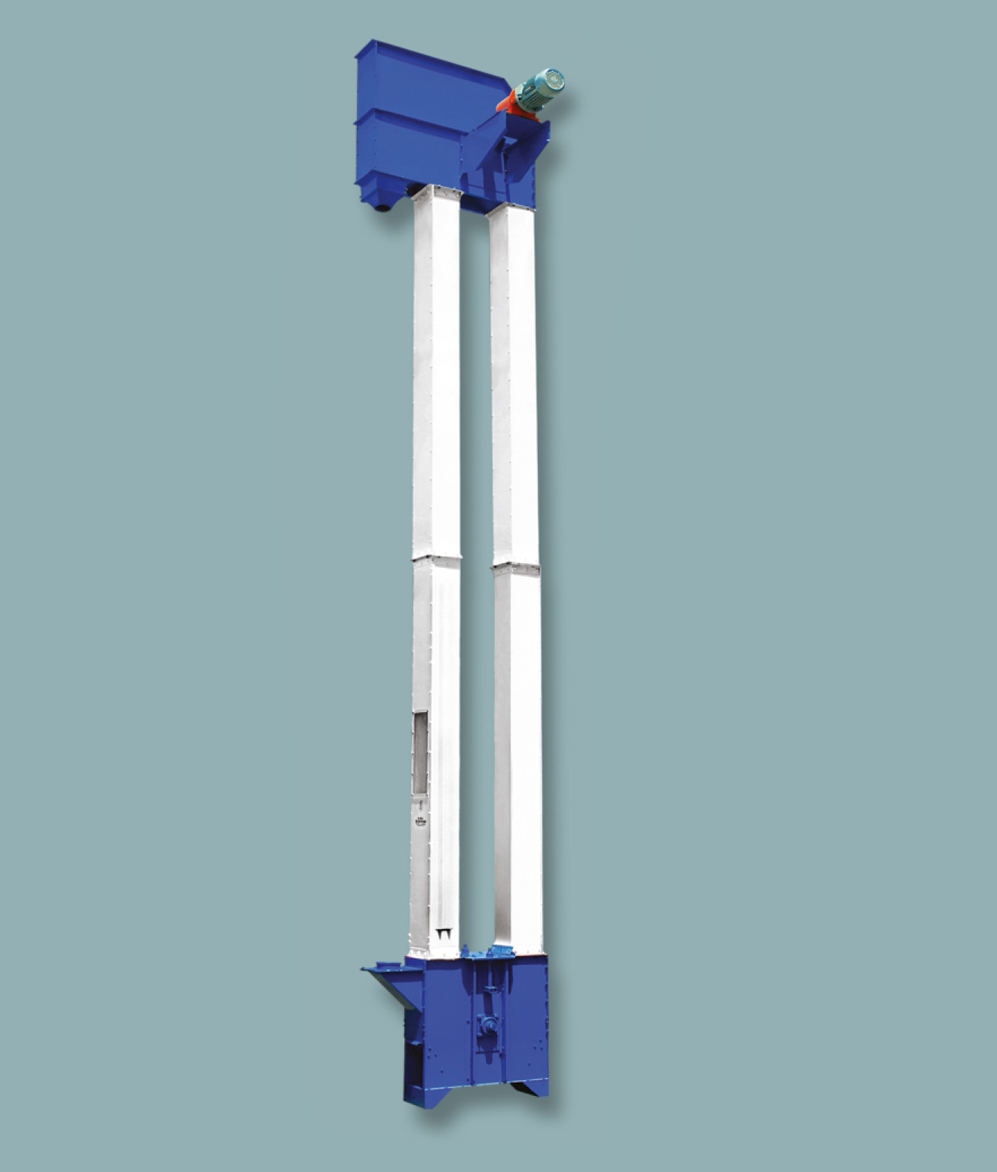

Elevator 1

The elevator is specially designed to get optimum output with lesser RPM. This will also reduce the broken percentage due to low RPM. The machine can be erected very easily .The belt and bucket used are of high quality and are more durable. Buckets are of shovel type.

The input of paddy or rice should be machine side. The delivery of paddy or rice  should be other side at the top of machine. Erect the machine, belt and bucket ‘ _ spacing position as per the display given on the machine. This function will make the machine to perform better in terms of load carrying and power consumption.

Technical Specifications

MODEL         DE 100                DE 200

CAPACITY               3 TO 4 TPH PADDY               5 TO 6 TPH PADDY

POWER REQUIRED GEARED MOTORS          1HP/1440RPM             1.5HP/1440RPM

BUCKET SIZES             6″              8”

OVERALL DIMENSIONS INMM LxWxH           595X555X7625              705 x 590 x 7625
