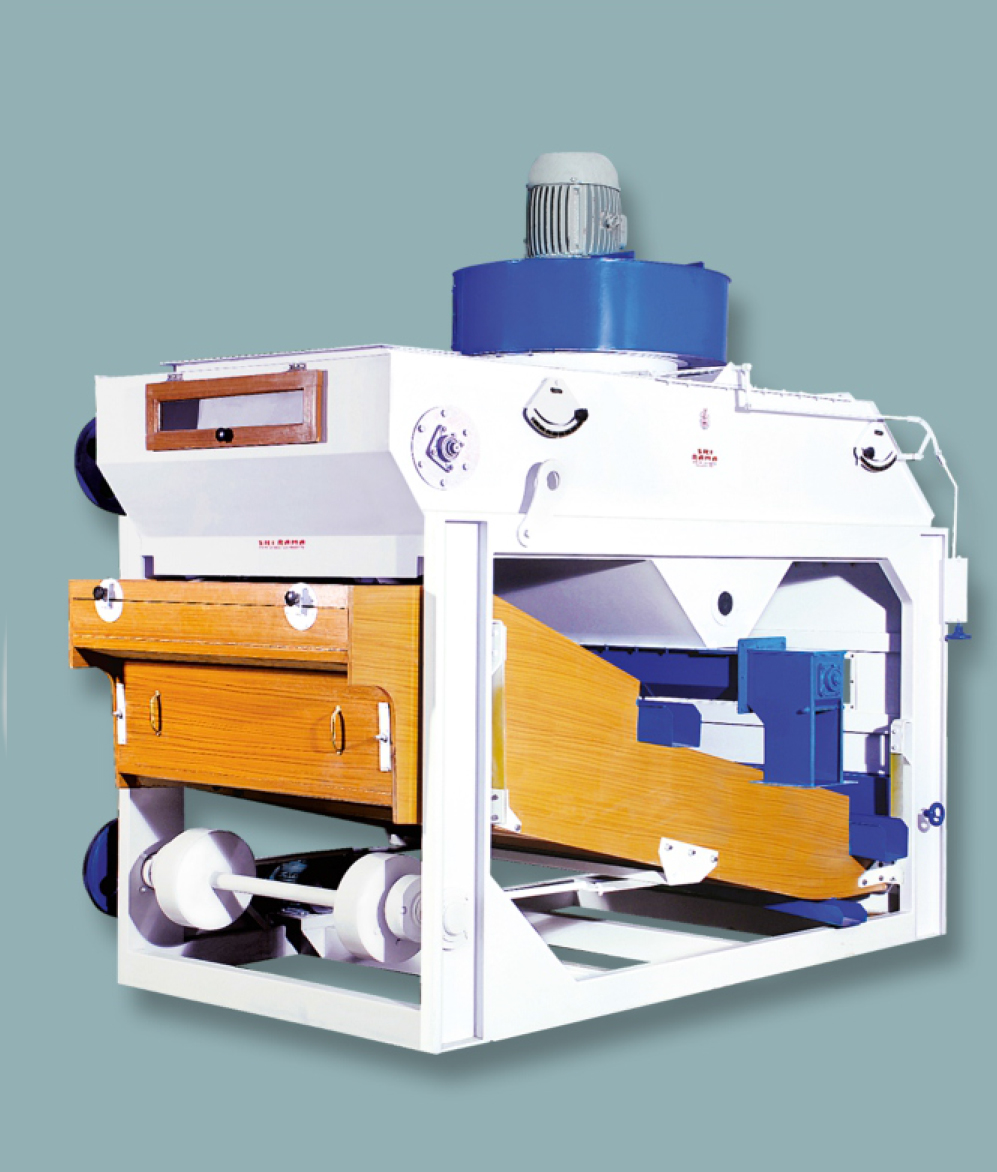

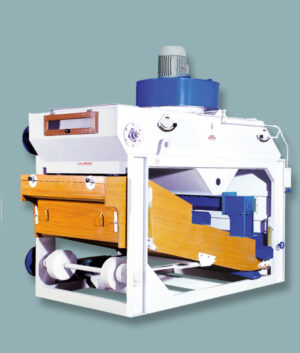

PPCD

Pre cleaner has been designed for pre cleaning of grains. Pre-Cleaner is equipped with feeding toller, one scalping screen and 2 layers of screens. Sri Rama’s highly efficient pre and after suction system is installed for extracting light impurities from the material both at the machine inlet and outlet. The pre and after suction waste dust and light weight trash are collected in a chamber and conveyed to machine outlet by a discharge screw conveyer. This is equipped with flap airlock system to prevent false air. The scalping screen separate the coarse impurities. The pre screen separates over size material and next screen separate undersize material. The screens are fitted specially designed wooden ball frames. These screens are kept clean by specially designed rubber balls which bounce in between the screens ball frames. The wooden boxes are specially designed for easy changing of screens. The screens are selected according to the material to be cleaned and sorted. All the shutters and valves can be adjusted and controlled. Low power consumption when compared to the capacity.

Technical Specifications

MODEL PPCD

CAPACITY 7 TO 8 TPH PADDY

POWER REQUIRED 2 HP / 1440 RPM

BLOWER MOTOR 7.5 HP / 1440 RPM

VOLTAGE A1SV / SOHz

OVERALL DIMENSIONS IN MM = 3050 x 2058 x 2972 LxWxH
