APPLICATION

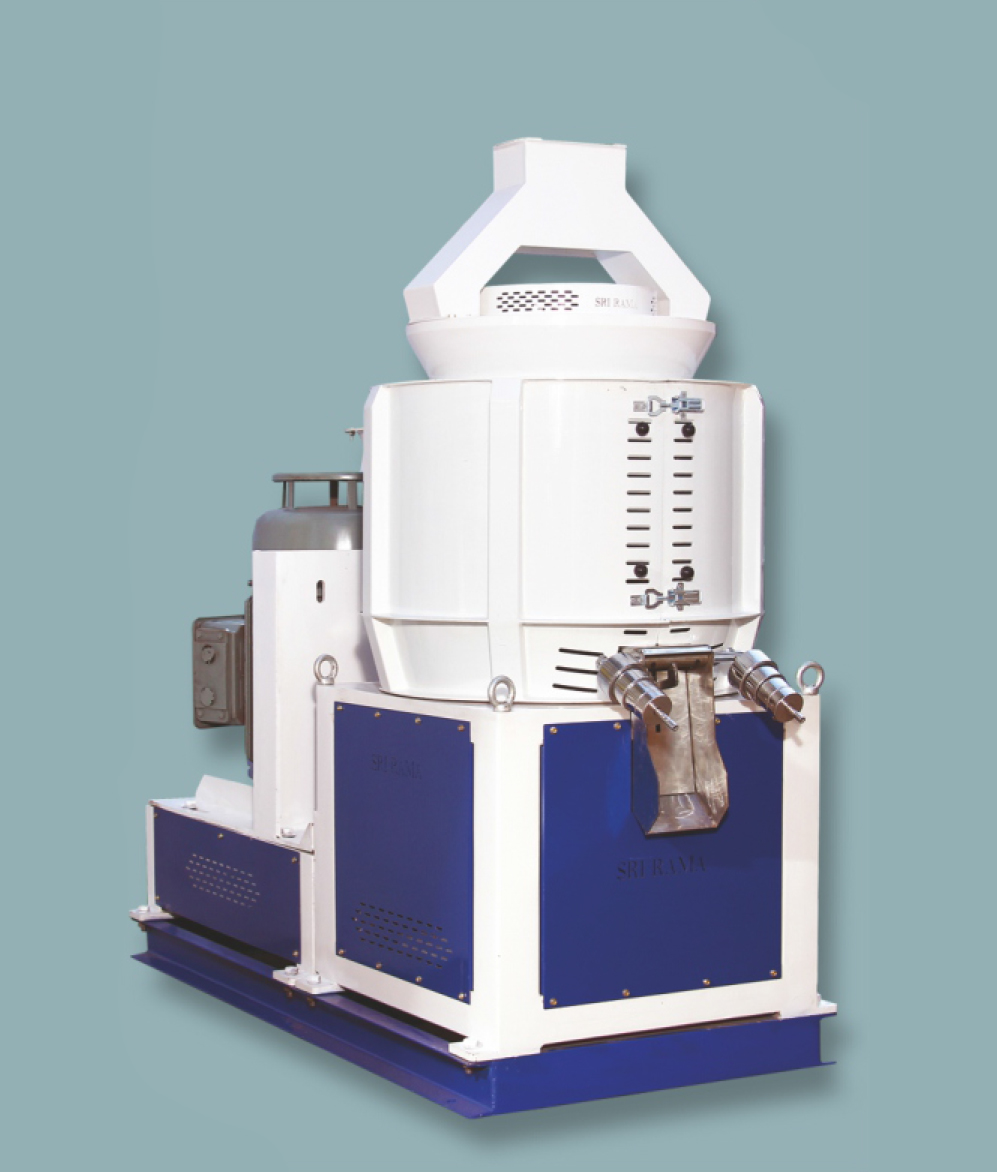

The WHITENER GRAIN MW/3 (250-6), MW/4 (310-6) & MWG-7 (340-7) produces white rice to perfection. Designed to fulfill the highest needs in gentle whitening. It is the perfect tool to obtain best surface treatment at highest whole grain yield.
The machine can be operated and maintained with minimum effort. Due to its optimized sanitation concept, cleaning time is almost eliminated. This machine is versatile enough to be adapted to various other products such as wheat, barley and peas.
WORKING PRINCIPLE
The WHITENER GRAIN SW 5 /SW 7 /SW7 PLUS uses the vertical abrasive, top to bottom working principal which has been proven to achieve the highest whole grain yield. The grain enters the whitener via two inlets and is guided into the processing chamber by feed screw. There, it is exposed to careful whitening of the grain surface between the six abrasive rings and the screen. A\s the rotor is dynamically balanced a smooth running is assured. The whitening intensity is controlled by two easily adjustable means the counterweight of the retaining gate and the gap between rotor and brakes. For coarse adjustment, the vertical brakes attached to the sieve basket and thereby tuning the resistance inside the chamber. The fine setting is one by changing the counterweight position of the retaining gate, thus controlling the pressure. The gravity flow of the product allows a trouble – free restart in case of an emergency shut down.
Technical Specifications
MODEL SW 3 SW 5 SW 7
CAPACITY 3-4 TPH PADDY 4-5 TPH PADDY 6-8 TPH PADDY
POWER REQUIRED 30HP/ 1440 RPM 40HP/ 1440 RPM 60 HP / 1440 RPM
VOLTAGE A15V / SOHv 415V / 50Hv 415V / 50Hv
No. OF GRINDING WHEELS 6 7 7
OVERALL DIMENSIONS IN CM LxWxH 1395x700x1540 1420x788x1607 1695x825x1840
