APPLICATION

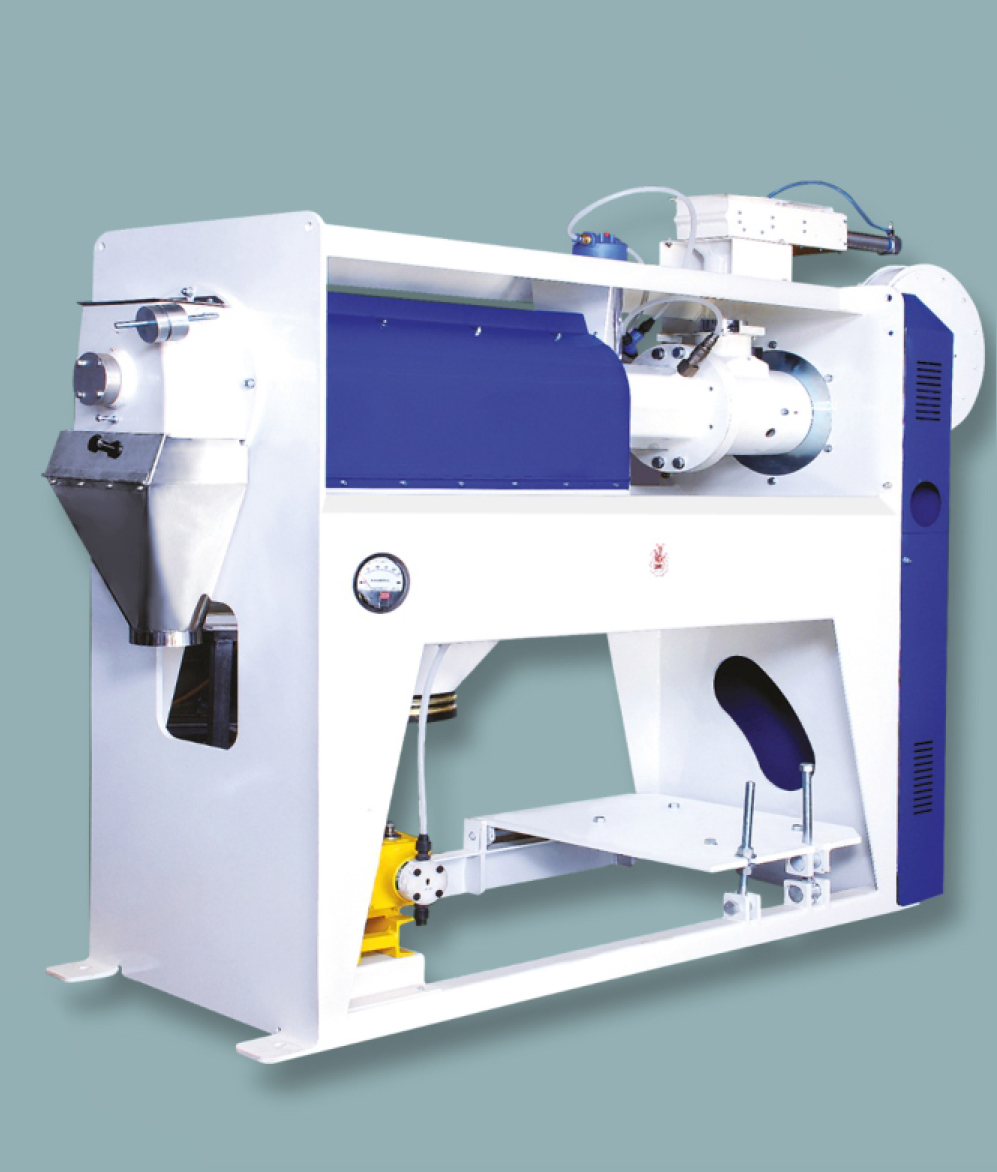

The ML-3 & ML-4 polisher is used in the final stage of processing to produce rice with a smooth, dust free surface which flows freely like water through the fingers. Clear transparent packs which show the contents are an ideal way to pack the High Poly processed rice with its gloss and pearly luster makes it a highly visible and attractive product on market shelves. If required the machine can also be used for standard dry polishing.
FUNCTION
The ML-3 & ML-4 processes rice in two stage on one shaft:
HUMIDIFIER
The rice is evenly coated with a thin film of water. A well controlled water flow produces a uniform process.
POLISHER
The glossy pearl like luster is achieved by a gentle rubbing of the rice kernels against each other. The rubbing intensity can be adjusted. The aspiration cools the process and keeps the system clean.
ACCURATE WATER DOSING SYSTEM
A well controlled flow-rate of water and a uniform process are critical in order to achieve an excellent polish on the rice. This is taken care by the automatic water dosing system which features fine programming of controlling nobs such as “water on” at minimum load and “water off” at overload. The unit includes a working hour meter which helps determine the service interval.
Technical Specifications
MODEL ML 3 ML 4 MI 4PLUS
CAPACITY 3T PH PADDY 4 TPH PADDY 4 TO 5 TPH PADDY
ASPIRATION (CMM) 35 50 60
POWER REQUIRED 30 HP/ 1440 RPM 40/50/60HP / 1440 RPM 60&75HP / 1440 RPM
VOLTAGE 415V / 50 HZ A15V / 50 Hz 415V / 50 Hz
OVERALL DIMENSIONS IN MM LxWxH 1480x670x1450 2655x700x1893 2655x700x2213
